Chapter 13 Density
Precise and unbiased population density estimates are fundamental to conserve rare and vulnerable species… But it can be complicated to calculate, especially with camera traps!
There we said it, estimating density from camera trap data is not easy, often isn’t precise, and can require you to move beyond “just” R (typically JAGS or Nimble). Also - over the last few years the number of density estimation approaches has grown rapidly, consequently it is impossible to cover all of them here.
There have been several great review papers published recently, and we recommend you check each one out:
Morin, Dana J., et al. “Comparison of methods for estimating density and population trends for low-density Asian bears.” Global Ecology and Conservation 35 (2022): e02058. This paper is great for overview of the different methods available with a specific species in mind - Asian black bear. They discuss the methods, and do not directly compare them.
Gilbert, N. A., Clare, J. D., Stenglein, J. L., & Zuckerberg, B. (2021). Abundance estimation of unmarked animals based on camera‐trap data. Conservation Biology, 35(1), 88-100. This paper provides a nice overview of the state of the art of density estimation of unmarked animals. They discuss the methods, and do not directly compare them.
Palencia, P., Rowcliffe, J. M., Vicente, J., & Acevedo, P. (2021). Assessing the camera trap methodologies used to estimate density of unmarked populations. Journal of Applied Ecology, 58(8), 1583-1592. A quantitative comparison of different unmarked density estimators - focusing on REM, REST and Distance methods.
13.1 Individually identifiable individuals
If you are dealing with a project with individually identifiable
animals, you are in luck as there are some great resources created by
Ian Durbach and David Borchers: https://www.scr-cameratrap.com/ and
an amazing tool for helping you design your
surveys called
secrdesign. Spatial capture recapture is considered the gold standard
in density estimation, you cannot get much better than this!
13.2 Unmarked animals
Unfortunately, it is not possible to identify individuals for the vast majority of species detected by camera traps. There are a growing number of analysis frameworks for unmarked animals, including:
13.2.1 Random encounter model
The random encounter model is based on modelling the ‘random encounters’ between moving animals and stationary camera traps. It takes into account key variables that affect the encounter rate:
- the camera detection zone, defined by its radius (length) and angle,
- the daily distance traveled by an animal in the population (a.k.a. day range)
Parameters required [and how you might get them]:
y = number of independent photo events [from our independent detections file]
t = total survey effort, in camera days [from our deployment data]
v = average distance moved per day, in km per day [We could use telemetry or we could use speed estimates derived from camera traps]
r = radius (length) of camera detection zone [We could use field trials as these parameters can vary station to station or the manufacturer specifications]
theta = angle of camera detection zone, in radians [We could use field trials as these parameters could vary station to station, or the manufacturer specifications]
Density is then:
\[D = \frac{y}{t} \cdot \frac{\pi}{v \, r \, (2 + \theta)}\]
The units must agree. The time unit in t must match the time unit in
v, and the distance unit in r must match the distance unit in v.
If t is in hours and v is in km per day, the estimate will be 24 times
too low. The equation does not convert units for you, and neither does
rem(), so we use days and kilometres throughout.
In this case we have speed data for moose and wolf in both winter and summer (derived from telemetry studies which occurred close to our region of interest). So let’s compare density estimates between winter (Oct-Mar) and summer (Apr-Sep) between these two species.
In our project we didn’t empirically measure the detection zone, so we will assume that these remain constant through time and space.
First, install the remBoot package, which provides the rem() function we
will use to calculate density.
#devtools::install_github("arcaravaggi/remBoot")
library(remBoot); library(dplyr); library(lubridate)13.2.1.1 Formatting
The formulation of the REM included in the ‘remBoot’ package is fairly
simple, a dataframe consisting of rows, where each row is an independent
detection, and with columns reflecting the strata of interest
(confusingly labeled site), location_id (labelled cam), the
group_size (labelled count), the viewshed length/radius (in km) and
the viewshed angle (width) in radians.
Note: in this instance, we don’t have empirically derived measures of the viewshed length and angle, so we will use a estimated average viewshed length based on the habitats we deployed cameras, and the reported viewshed angle assessed by TrailCameraPro by Reconyx for the Hyperfire 2 (the camera model used in this study): angle = 42.9; and distance = 14m.
For a discussion of why good estimates of viewshed properties are important see: Carswell, Brendan M., Tal Avgar, Garrett M. Street, Sean P. Boyle, and Eric Vander Wal. “Dead zones, obstructions, and missed captures: A novel approach for determining the Effective Capture Area for remote camera traps.” bioRxiv (2024): 2024-05.
Moose first!
13.2.2 Moose
From existing literature, we are expecting moose densities of roughly 0.2-0.5 individuals per km2.
ind <- read.csv("data/processed_data/AlgarRestorationProject_30min_independent_detections.csv", header=T)
# Setup a winter and summer months variable
summer <- c("04", "05", "06", "07", "08", "09")
winter <- c("01", "02", "03", "10", "11", "12")
# Subset to moose (alces alces) and the summer months
moose_summer <- ind[ind$sp=="Alces.alces" & substr(ind$timestamp,6,7) %in% summer,c("placename", "event_groupsize")]
# rename the columns
moose_summer <- moose_summer %>%
rename("cam"=placename,
"count"=event_groupsize)
moose_summer$dist <- 0.014 # Our detection distance in km
moose_summer$theta <- 42.9*(pi/180) # Our viewshed angle
# Subset to moose (alces alces) and the winter months
moose_winter <- ind[ind$sp=="Alces.alces" & substr(ind$timestamp,6,7) %in% winter,c("placename", "event_groupsize")]
# rename the columns
moose_winter <- moose_winter %>%
rename("cam"=placename,
"count"=event_groupsize)
# Add the detection zone covariates
moose_winter$dist <- 0.014
moose_winter$theta <- 42.9*(pi/180)Finally we need two constants:
- the effort in each given strata of interest (camera days), and 2) the average day range of the focal animal (km per day).
To get the number of camera days per season, we can use the monthly_observations dataframe:
mon_obs <- read.csv("data/processed_data/AlgarRestorationProject_30min_independent_monthly_observations.csv", header=T)
# Effort in camera days, to match day range in km per day
summer_effort <- sum(mon_obs$days[substr(mon_obs$date, 6,7) %in% summer])
winter_effort <- sum(mon_obs$days[substr(mon_obs$date, 6,7) %in% winter])Here I will use the average daily distance for summer and winter derived from telemetry datasets on Movebank from locations close to where this camera trap study was conducted:
Moose winter = 1.07 km per day Moose summer = 1.15 km per day
We also need a measure of uncertainty. remBoot’s boot_sd() resamples
detections, which ignores the differences between cameras. Those differences
are usually the largest source of variation in the encounter rate, so we
resample cameras instead. This includes the cameras which never detected the
species, and those zeros are part of the estimate.
# Bootstrap REM density, using the camera as the unit of replication
boot_rem <- function(dat, months, v, nboots = 1000) {
# Camera days for each camera in this season
cams <- mon_obs %>%
filter(substr(date, 6, 7) %in% months) %>%
group_by(placename) %>%
summarise(days = sum(days))
# Individuals detected at each camera, with zero where there were none
counts <- dat %>%
group_by(cam) %>%
summarise(y = sum(count))
cams <- left_join(cams, counts, by = c("placename" = "cam"))
cams$y[is.na(cams$y)] <- 0
# The part of the REM equation which does not change between resamples
zone <- pi / (v * dat$dist[1] * (2 + dat$theta[1]))
replicate(nboots, {
i <- sample(nrow(cams), replace = TRUE)
(sum(cams$y[i]) / sum(cams$days[i])) * zone
})
}
# Run rem() and the bootstrap for one season, and return one row of results
fit_rem <- function(dat, effort, months, v, season, species) {
boots <- boot_rem(dat, months, v)
data.frame(season = season,
species = species,
density = rem(dat = dat, tm = effort, v = v),
se = sd(boots),
lower = unname(quantile(boots, 0.025)),
upper = unname(quantile(boots, 0.975)))
}Now lets fit the REM model.
set.seed(123) # To make sure we all get the same result
moose_res <- rbind(
fit_rem(moose_summer, summer_effort, summer, v = 1.15, "summer", "moose"),
fit_rem(moose_winter, winter_effort, winter, v = 1.07, "winter", "moose"))Take a look at your results:
## season species density se lower upper
## 1 summer moose 0.9043149 0.1576681 0.6001643 1.222983
## 2 winter moose 0.7019148 0.3051480 0.2408336 1.373421
Remember, we were expecting a density of around 0.2 to 0.5 individuals per km2. Our point estimates are above that range. With cameras as the unit of replication, the summer interval stays above it, while the winter interval overlaps it.
Before taking these numbers at face value, consider what they assume:
- Camera placement. The REM assumes cameras are placed at random with respect to animal movement. Many of our cameras are on seismic lines. If moose use those lines more than the surrounding forest, density will be overestimated.
- Detection zone. We assumed 14 m and 42.9° for every camera, rather than measuring them. If the real radius is shorter, density is higher than our estimate.
- Day range. Our values come from telemetry, and distances summed between fixes underestimate the real path. Density is inversely proportional to v, so a longer real path means a lower density.
- Independent events. The REM counts entries into the detection zone, so the 30 minute filter can remove real re-entries. Here it matters little: moving the window between 1 and 60 minutes changes the moose estimates by 7 to 14%.
- Uncertainty. Our intervals only reflect differences between cameras. They treat v, r and theta as known, so the true uncertainty is larger.

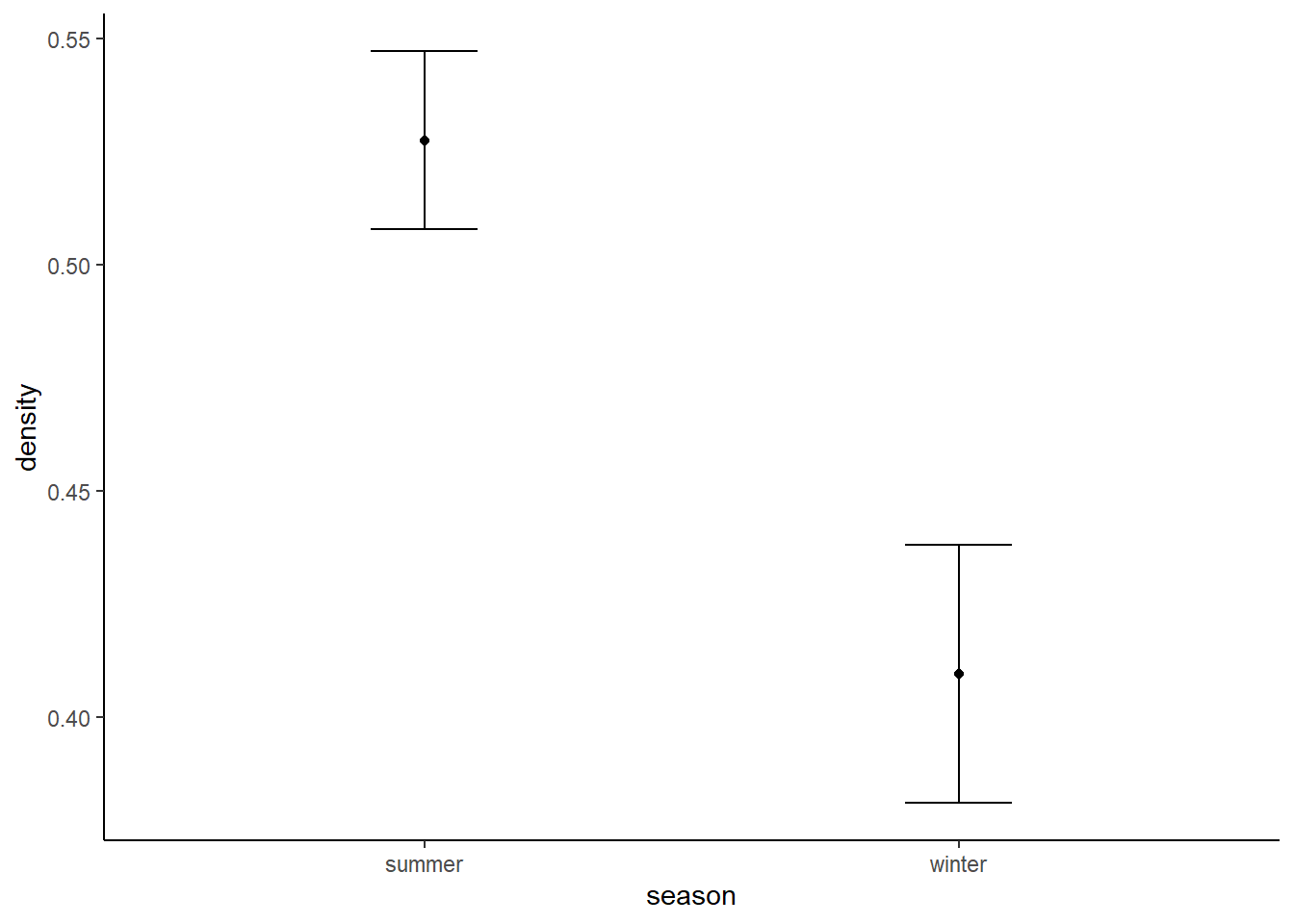

Lets make a plot of the estimated densities and their 95% confidence intervals:
library(ggplot2)
p<-ggplot(moose_res, aes(x=season, y=density)) +
geom_point()+
geom_errorbar(aes(ymin=lower, ymax=upper), width=.2,
position=position_dodge(0.05)) +
theme_classic()
p
13.2.3 Wolf
From existing literature we would expect wolf densities of 0.001 - 0.025 individuals per km2.
Lets repeat our analysis for wolves:
# Subset to wolf (canis lupus) and the summer months
wolf_summer <- ind[ind$sp=="Canis.lupus" & substr(ind$timestamp,6,7) %in% summer,c("placename", "event_groupsize")]
# rename the columns
wolf_summer <- wolf_summer %>%
rename("cam"=placename,
"count"=event_groupsize)
wolf_summer$dist <- 0.014 # Our detection distance in km
wolf_summer$theta <- 42.9*(pi/180) # Our viewshed angle
# Subset to wolf (canis lupus) and the winter months
wolf_winter <- ind[ind$sp=="Canis.lupus" & substr(ind$timestamp,6,7) %in% winter,c("placename", "event_groupsize")]
# rename the columns
wolf_winter <- wolf_winter %>%
rename("cam"=placename,
"count"=event_groupsize)
# Add the detection zone covariates
wolf_winter$dist <- 0.014
wolf_winter$theta <- 42.9*(pi/180)We have the following values for wolf movement
Wolf winter = 11.8 km per day Wolf summer = 11.9 km per day
wolf_res <- rbind(
fit_rem(wolf_summer, summer_effort, summer, v = 11.9, "summer", "wolf"),
fit_rem(wolf_winter, winter_effort, winter, v = 11.8, "winter", "wolf"))
wolf_res## season species density se lower upper
## 1 summer wolf 0.03972353 0.01372595 0.01629597 0.07130535
## 2 winter wolf 0.05443596 0.02375002 0.01514248 0.10891196
Our point estimates are above the top of the expected range of 0.001 to 0.025 individuals per km2, although both intervals overlap it. This is despite the wolf control which has been conducted in the area. Wolves are known to travel along linear features, so the placement of our cameras may be especially important for this species.
library(ggplot2)
p<-ggplot(wolf_res, aes(x=season, y=density)) +
geom_point()+
geom_errorbar(aes(ymin=lower, ymax=upper), width=.2,
position=position_dodge(0.05)) +
theme_classic()
p
The winter point estimate is higher than the summer one, but the intervals overlap widely, so these data do not show a seasonal difference in wolf density.
The reference for the movement data use to calculate the movement speeds are:
13.2.4 Time to event / Space to event density estimates
Whist the REM has been around for a while, there are a couple of new density formulations on the block! Time to event (TTE) and Space to event (STE).
Both TTE and STE models use the mathematical relationship between the poisson and exponential distributions to estimate animal density. Conceptually, TTE and STE rely on the basic idea that greater abundance in an area leads to greater detection rates at cameras. The first of these, TTE, estimates abundance from the amount of time that elapses before an animal enters the viewshed of a given camera.
TTE requires an independent estimate of animal movement rate. TTE is the only method of the three that requires an estimate of mean animal movement rate, defined across all animal behaviors, including rest (Moeller et al. 2018)
Conceptually, STE is similar to TTE with space substituted for time… In contrast to TTE, the STE model uses instantaneous sampling occasions, and therefore it does not depend on movement rate.
For both methods, cameras should be randomly or systematically deployed across the sampling frame. Practices to increase detections, such as targeting high-use trails, should be avoided as they can bias the abundance estimates. Second, the authors note that animals should have no behavioral response to cameras or camera sites. This precludes the use of bait or lures to increase encounter rates. It also means that cameras should be unobtrusive and not repel animals with bright flashes or human scent. Finally, the area viewed by each camera should be known across time and measured accurately. If camera area is not measured accurately, abundance estimates will be biased.
For STE, motion-sensor detection probability is defined by four conditions: the animal is present in the camera’s viewshed, the motion sensor detects the animal, the camera takes a picture with the animal still in view, and the user correctly identifies the species.
Sampling effort is difficult to quantify from motion-sensor photography, as the outcome (no picture) is the same whether the camera stops working, the motion-sensor doesn’t detect the animal, or the animal is absent. Time-lapse photography can help define motion-sensor effort if the two are used in conjunction. For example, time-lapse photos throughout the day will show that the batteries are functioning, the lens is clear of snow and debris, and the camera is pointed in the intended direction, which can help give confidence that the motion sensor is working as intended.
STE and TTE use camera data in a particularly unique way that may be unfamiliar to many users. Rather than using counts of individual animals or independent detection events, STE uses the amount of space sampled by cameras until an animal detection at a given time, while TTE uses the time elapsed from an arbitrary starting point to the first detection of the species of interest.
Note The details above represent an abridged form of the information in:
Lets attempt to apply the STE method to moose.
We base our settings based on those in:
An application of this method on wolves can be seen here:
They didn’t also estimate viewshed size: “we did not estimate viewshed area during camera deployment; thus, we used a viewshed area based on expected performance of motion-triggered cameras. We assumed the cameras detected wolves within a 106-m2, pie-slice shape area in front of the camera derived from standard field protocols and that the motion trigger detected all wolves that passed through the viewshed.”
13.2.4.1 Moose
#library(remotes)
#remotes::install_github("annam21/spaceNtime", build_vignettes=TRUE)
library(spaceNtime)The first thing we need is a dataframe of all the detections of our focal species with three columns:
- cam: the
placename(camera location) where surveys occured - datetime: the ‘timestamp’
- count: the group count
img <- read.csv("data/processed_data/AlgarRestorationProject_raw_detections.csv", header=T)
# Make ind timestamp a date object
img$timestamp <- ymd_hms(img$timestamp)
moose_dat <- img %>%
filter(sp=="Alces.alces") %>%
dplyr::select(placename, timestamp, event_groupsize) %>%
rename(cam = placename,
datetime = timestamp,
count = event_groupsize)spaceNtime also needs camera deployment data. Luckily, the deployment
data it requires is identical to how we store deployment data - each row
represents a block of continuous activity, and if the camera ever goes
off then comes back online, that is represented as a new row.
The deployment data needs the following columns:
- cam: the
placename(camera location) where surveys occured - start: deployment start date
- end: deployment end date
- area: area in sq meters (we will use the same definition as in the REM example: a sector with a 14 m radius and a 42.9° angle, which is (42.9 / 360) x pi x 142 = 73.4 m2)
dep <- read.csv("data/raw_data/example_data/deployments.csv", header=T)
# This is the raw file, so repeat the correction from the error checking chapter
dep$end_date[dep$deployment_id=="ALG036_2019-04-04"] <- "2019-11-21"
dep$start_date <- ymd_hms(paste(dep$start_date, "12:00:00"))
dep$end_date <- ymd_hms(paste(dep$end_date, "11:59:00"))
snt_dep <- dep %>%
dplyr::select(placename, start_date, end_date) %>%
rename(cam = placename,
start = start_date,
end = end_date)
snt_dep$area <- (42.9 / 360) * pi * 14^2 # 73.4 sq meters
# Remove the NA
snt_dep <- snt_dep[is.na(snt_dep$end)==F,]After defining the detection dataframe and deployment data we need to specify the sampling occasions. This can be done manually or with the function build_occ(). The sampling occasions should be in a data.frame or tibble with the following structure:
Caution: this takes a while to run and needs a lot of memory, as it builds a table with a row per camera per sampling occasion. The winter period needed more than 7 GB at these settings, so we do not run it when building this book.
summer_dates <- as.POSIXct(c("2018-04-07 00:00:00", "2018-09-30 23:59:59"), tz = "GMT")
summer_occ <- build_occ(samp_freq = 30, # seconds between the start of each sampling occasion
samp_length = 2, # duration of each sampling occasion (seconds)
study_start = summer_dates[1],
study_end = summer_dates[2])
# Then build our dataframe
ste_summer <- ste_build_eh(moose_dat, snt_dep, summer_occ)
winter_dates <- as.POSIXct(c("2018-10-01 00:00:00", "2019-03-31 23:59:59"), tz = "GMT")
winter_occ <- build_occ(samp_freq = 30, # seconds between the start of each sampling occasion
samp_length = 2, # duration of each sampling occasion (seconds)
study_start = winter_dates[1],
study_end = winter_dates[2])
# Then build our dataframe
ste_winter <- ste_build_eh(moose_dat, snt_dep, winter_occ)
# Run the models
moose_summer_res <- ste_estN_fn(ste_summer, study_area = 1e6) # specify 1 sq kilometer
moose_winter_res <- ste_estN_fn(ste_winter, study_area = 1e6) # specify 1 sq kilometer
moose_summer_res
moose_winter_resThe results are:
Winter - 0.023 individuals per km2
Summer - 0.033 individuals per km2
These are about 30 times lower than our REM estimates, and also well below the 0.2 to 0.5 individuals per km2 we expected. The two methods do not agree, and working out why is a useful exercise. A likely reason is the third condition listed above: the camera has to take a picture while the animal is still in view. Our cameras are motion triggered, so an animal standing in the viewshed between bursts of images counts as absent on those sampling occasions. As the STE measures how often animals are in view at an instant, missing that time would bias it low. Time-lapse images, which sample at fixed times whether or not the sensor triggers, would reduce this problem.
13.2.7 Unmarked spatial capture recapture (uSCR)
Here you have to currently have to go beyond R - but there are some good options and exciting new developments. See Gilbert et al. 2021 for more details.
13.3 Future directions
Direct comparisons of the different methods are starting to appear:
“Further, while unmarked methods require less information and model parameters, there is far greater risk of bias in estimates resulting from model assumptions that are difficult to validate. The inconsistencies in precision of unmarked empirical estimates, even within the same study designs, sites, and species (Table 3), likely demonstrate unaccounted assumption violations pertaining to animal movement and we would expect these issues to extend to most Asian bear populations.”
The future of determining viewshed area:
Nice way of estimating “day range” from camera traps which is equivalent to telemetry data Palencia, Pablo, et al. “Estimating day range from camera‐trap data: the animals’ behaviour as a key parameter.” Journal of Zoology 309.3 (2019): 182-190.
And Pablo Palencia has a nice package to help you integrate speed data derived from cameras with activity data derived from camera traps in the activity package. See the Activity chapter!
